eUSB Controller IP

eUSB Controller IP

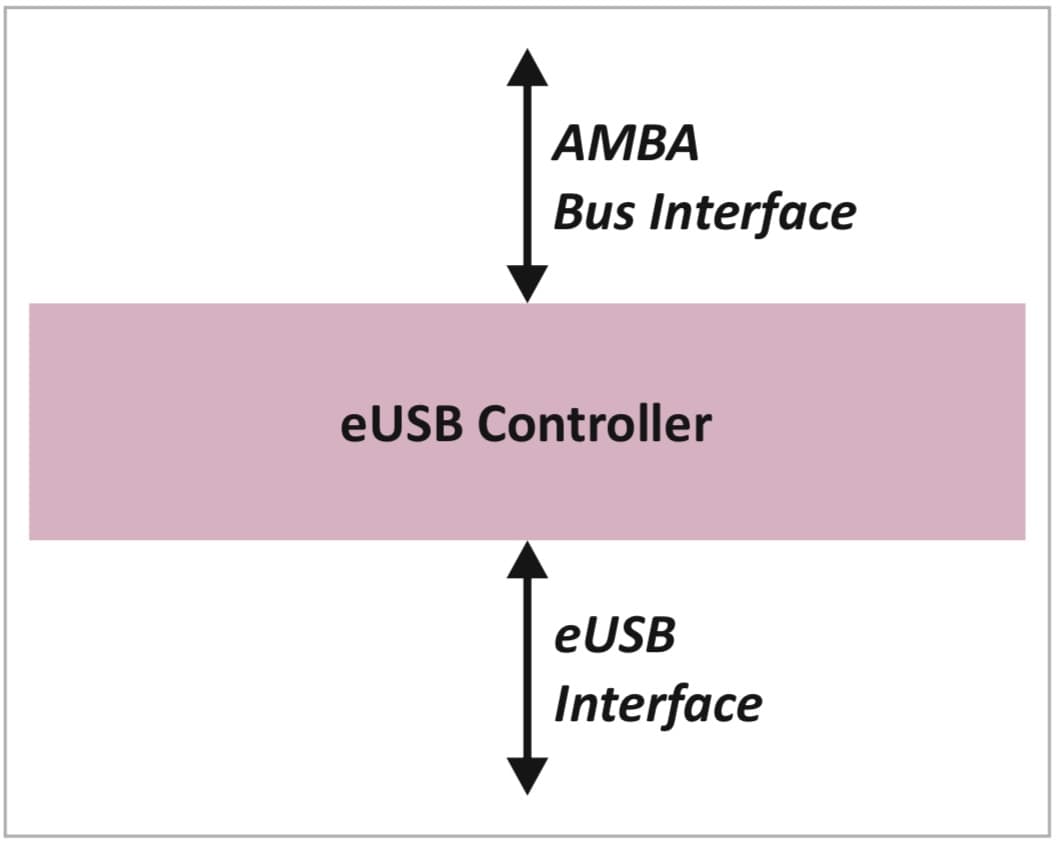

Truesilicon's eUSB controller provides an effective & efficient feature to support eUSB interface. It can be use as eUSB host or device.

Key Benefits

• Available in native verilog (RTL)
• Linting, Synthesis, CDC, RDC are cleaned up.
• 100% Code coverage
• Verified with an expert team using comprehensive and Regression Test Suites
• IP generation tool and programmable model
• Dynamic power saving
• 24X5 customer support

Features

• Supports eUSB2-v2 extended Symmetric data rates (HSSx), extended Asymmetric data rates (HSUx & HSDx)
• Supports Scrambling and Bit Stuffing
• Supports the Disconnect/Connect with Analog Ping in Extended High-Speed Signaling at nave mode.
• Supports Protocol Extended Token transactions for LPM Ack handshake.
• Supports all eUSB2-v2 Repeater architecture and operations Host Reset, Low power states, Resume, Remote Wakeup, Disconnect Signalling between Host and Peripheral device.
• Compliant with eUSB2-v2 specification rev 1.0.
• eUSB2-v2 PHY and eUSB2-v2 is fully compliant to the USB2.0 Rev 2.0 Specification that supports high-speed operation.
• Supports any eUSB2-v2 device in nave mode.
• Supports UTMI/UTMI+ Parallel Mode.
• Supports link power management LPM-L1 (L1) & Suspend (L2).
• Supports register access protocol (RAP) for eUSB2-v2 devices or repeater configurations.
• Fully compliant to the USB2.0, xHCI 1.1, Utmi+ 1.0 Transceiver Interface Specificaon with backward compatibility to USB 1.1.
• Supporting On-The-Go which is fully compliant OTG Rev 2.0, V1.1a.
• Supports xHCI functionality on Host model.
• Host Model Supports up to 127 devices of any tier level.
• Supports 15 IN and 15 OUT and 1 control endpoint for each device.
• User-controlled device aach/ detach function.
• Supports Extended High Speed (HSx) Functionality.
• Supports all USB2 transfer types; Control, Bulk, Interrupt, and Isochronous.
• Supports High Bandwidth ISO and Interrupt transfers.
• Supports resume and remote wake-up.
• Configurable Utmi+ Interface width 8 and 16 bits.

Deliverables

• eUSB Controller
• IP generator & configuration tool
• Verilog test environment with verilog testcases
• CDC constraints file (.sdc)
• IP analysis reports
  • Linting report
  • Synthesis report
  • CDC report
• Simulation script
• IP Block Guide
• IPG Guide?
